PRODUCTS
PACKAGING OF RUBBER COMPOUNDS

Tovo Gomma supplies compounds produced in various types of packaging, according to customers’ requirements and vulcanisation method.

Foldered

The compound is packaged in a single strip and put on pallets directly from Batch off.


MINIMUM
MAXIMUM
WIDTH
300mm
700mm
THICKNESS
5mm
10mm

Packaging: on pallets wrapped in stretch polyethylene.
Wig-wag perforated

The foldered compound is pre-cut in strips easily detachable.
Strips can be perforated in width 50, 100, 150 and 200 mm.


MINIMUM
MAXIMUM
WIDTH
300mm
700mm
THICKNESS
5mm
10mm

Packaging: on pallets wrapped in stretch polyethylene.
Plates

The compound is cut in plates.


MINIMUM
MAXIMUM
WIDTH
300mm
700mm
LENGTH
700mm
1200mm
THICKNESS
5mm
10mm

Packaging: on pallets wrapped in stretch polyethylene.
Rolls

The compound exiting Batch off is directly packaged in rolls.


MINIMUM
MAXIMUM
WIDTH
300mm
700mm
THICKNESS
5mm
10mm

Packaging: rolls wrapped in polyethylene on pallets.

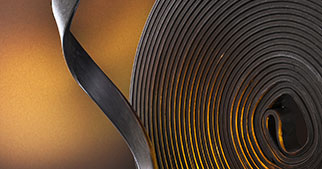

Strip on spool

On exit from the Batch off, the material is packaged in spool.


MINIMUM
MAXIMUM
WIDTH
40mm
40mm
DIAMETER
500mm
600mm
THICKNESS
5mm
10mm

Packaging: stacked horizontally and wrapped in stretch polyethylene on pallets.
Endless strip

After being mixed, the compound is extruded and strained to obtain endless strips free of any type of impurities.


MINIMUM
MAXIMUM
WIDTH
30mm
200mm
THICKNESS
5mm
12mm

Packaging: crates/boxes.
Endless strip strained

After being mixed, the compound is extruded and strained to obtain endless strips free of any type of impurities.


MINIMUM
MAXIMUM
WIDTH
40mm
20mm
THICKNESS
6mm
10mm

Packaging: Continuous strips in crates or boxes or pallets wrapped in polyethylene.
Calendered rolls

The compound is calendered through an extrusion line with roller head, to obtain very high quality, in rolls with anti-adhesive or smooth/ embossed polyethylene film to separate the various layers and avoid sticking.


MINIMUM
MAXIMUM
WIDTH
250mm
1500mm
DIAMETER
800mm
800mm
THICKNESS
0,5mm
10mm

Packaging: on pallets wrapped in stretch polyethylene.
Calendered plates

The compound is calendered through an extrusion line with roller head to obtain very high quality and cut in plates. Packaging with polyethylene film to separate the layers and avoid sticking.


MINIMUM
MAXIMUM
WIDTH
250mm
1400mm
LENGTH
700mm
1800mm
THICKNESS
1mm
10mm

Packaging: on pallets wrapped in stretch polyethylene.

Notes: all measurements are approximate. Feasibility should be checked, according to the compound formulation.
PACKAGING The compounds, packaged according to customers’ requirements, are then delivered in different packaging: With the following standard dimensions: Different packaging can be agreed according to customers’ special requirements; however technical feasibility should be checked.
